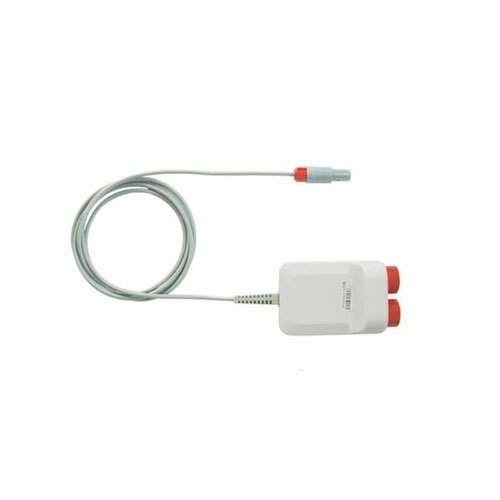

External IBP Module for Patient monitor

IBP-1

EXTERNAL IBP
IBP to monitor ART, PAP, CVP, RAP, LAP, ICP and P1-P2
low-power, no extra power supply is needed, automatic digital data processing, and can repeatedly zeroing, calibration function.

Read Less

EXTERNAL IBP
IBP to monitor ART, PAP, CVP, RAP, LAP, ICP and P1-P2
low-power, no extra power supply is needed, automatic digital data processing, and can repeatedly zeroing, calibration function.

CE marked

Made by ABS

Not made with natural rubber latex

External IBP, uses PLUG & PLAY IBP TECHNOLOGY

Dual-channel measurement.

Low-power, no extra power supply is needed

Automatic digital data processing

Repeatedly zeroing, calibration function

Using for monitor:
ART: Arterial pressure pressure
PAP: pulmonary artery pressure
CVP: Central venous pressure
RAP: Left atrial pressure
LAP: Right atrial pressure
ICP: Intracranial pressure
P1-P2: Expansion of the pressure

Related items

IBP-1

External version, uses PLUG PLAY IBP TECHNOLOGY Dual-channel measurement. Low-power, no extra power supply is needed Automatic digital data processing

Meditech Equipment Co.,Ltd is part of Meditech Group. Product(s) described may not be licensed or available for sale in all countries. Sonotech, Sonovet, iSonic, FOs2pro, Dolphi, Defi, HeartRec,miniScan,Cardios,SpirOx,iBreath, Meditech and all corresponding design marks are trademarks of Meditech. The symbol indicates the trademark is registered. Patent and Trademark Office and certain other countries. All other names and marks mentioned are the trade names, trademarks or service marks of their respective owners. Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions.

Main Board Dimension	53.1 x 40.6 x 20mm
Probe Board Dimension	45.2 x 20.6 x 10mm
Number of Channels	Dual Channel
Pressure Name	ART, PAP, CVP, RAP, LAP, ICP, P1, P2
Range of measurement And alarm	ART 0 - 300 (mmHg) PA -6 - 120 (mmHg) CVP/RAP/LAP/ICP -10 - 40 (mmHg) P1/P2 -10 - 300 (mmHg)
Zero-time	Every time upon measurement
Calibration	Regularly or when new sensor is used
Pressure Sensor
Sensitivity	5µV/V/mmHg
Impedance range	300 - 3000 (Ohm)
Resolution	1 (mmHg)
Accuracy	±2% or ±1mmHg, whichever is bigger
Update Time	About 1 second
