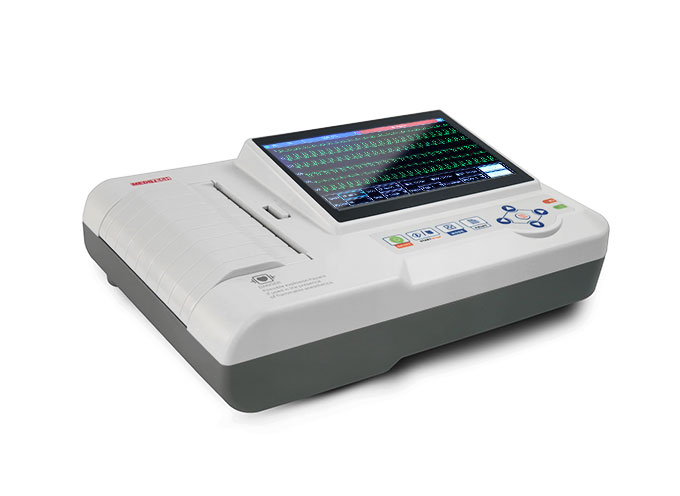

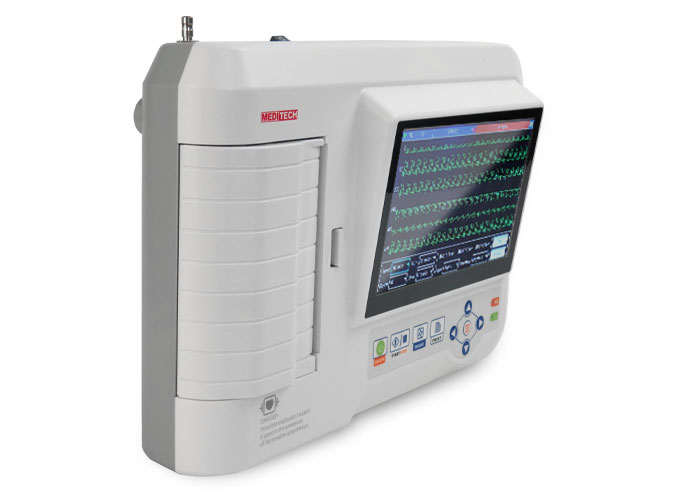

EKG6012
EKG6012 7" TFT touch screen 3,6 channel ECG machine with interpretation,
Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Storage more than 1000 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Storage more than 1000 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
EKG6012 7" TFT touch screen 3,6 channel ECG machine with interpretation,
Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Storage more than 1000 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
Read More Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Storage more than 1000 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
Contact Us
for more information
3+1 /6 channel ECG machine
12-lead simultaneous standard resting ECG

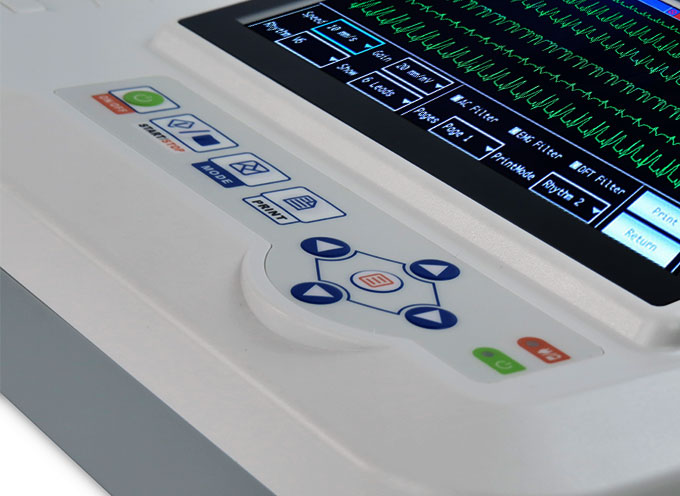

7-inch TFT touch screen led backlight
Digital isolation technology and signal processing solution digital filter
Patient management name and age and id with touch keyboard

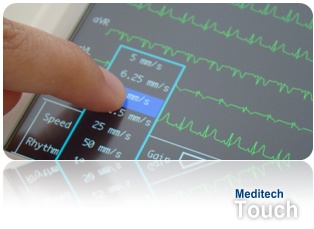

Speed from 5mm/s - 100mm/s
Multi-language : English German French Italian Turkish Spanish
Built-in lithium rechargeable battery wide thermal printing system

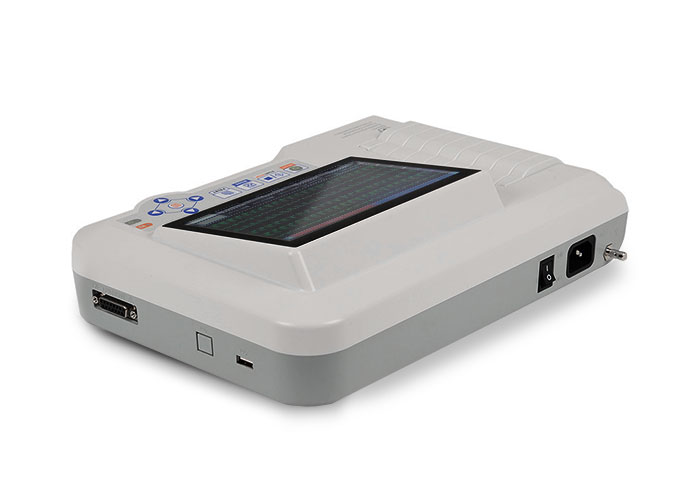

USB and LAN socket
Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
Auto-measurement auto-analysis and auto-interpretation
Comes with PC Software for data transfer
More details click here
Lead: Standard 12 leads
Patient leak current: <10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant>3.2s
CMRR: >60dB
EMG interference filter: 25/35Hz(-3dB)
Recording way: Thermal array printing system
Specification of recording paper: 80mm(W)×20m(L) high-speed thermal paper
Paper speed:
- Auto record: 25mm/s 50mm/s error:±5%
- Rhythm record: 25mm/s 50mm/s error:±5%
- Manual record:5mm/s 6.25mm/s10mm/s 12.5mm/s 25mm/s 50mm/s error:±5%.
Sensitivity selections: 2.55102040mm/mV 5 options error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV .
Auto record: Record setup according to record format and auto mode automatically changing leads measuring and analysing.
Manual record: Record setup according to record format manually changing leads.
Measurement parameters: HR P-R interval P Duration QRS Duration T Duration Q-T interval Q-Tc P Axis QRS Axis T Axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: Class I Type CF defibrillation proof applied part.
Enduring polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power supply 220V)
Operation
a) Environment temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply: AC:100~240V50/60Hz
DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa
Transportation and Storage
a) Environment temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input way: Floating and defibrillation protection
Standard:
Chest Electrode ......... 6Pcs
Clamp Electrode ........... 4Pcs
EKG Cable ................. 1Pcs
USB Cable ..................... 1Pcs
CD "CardioSoft pro" ........ 1Pcs
Ground Wire .................. 1Pcs
Paper Role ...................... 1Pcs
Power cable .................... 1Pcs
Cleaning Cloth ................ 1Pcs
Options:
Case
Thermal Paper
Trolley
PC(Computer)accessories
Printer accessories
