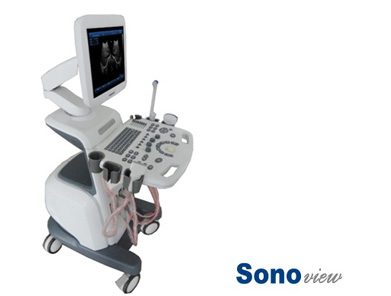

Sonoview®
Sonoview® Full digital imaging Ultrasound Scanner with clear image Sonoview PC based, abundant functions ,
15 " color LCD screen ,Broadband multi-frequency probes,
3D Upgradable

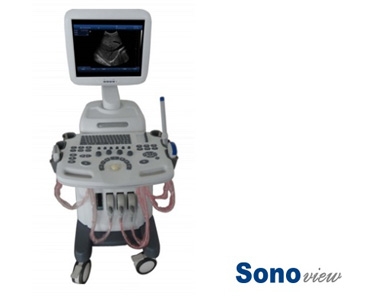

Trolley Ultrasound Scanner
Sonoview® Full digital imaging Ultrasound Scanner with clear image Sonoview PC based, abundant functions ,
15 " color LCD screen ,Broadband multi-frequency probes,
3D Upgradable

Trolley Ultrasound Scanner
Read More
15 " color LCD screen
Full digital imaging technology, clear image
PC based, abundant functions
Broadband multi-frequency probes
64, 128, 256, 512, 1024 frames (preset by user) cine loop

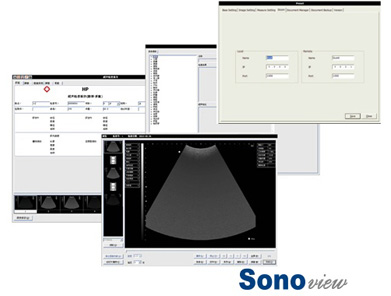

Built-in workstation software, powerful function of information management and report
Complete application software packages, enhanced measurement and calculation functions
Large capacity of local storage and USB storage
3D image function(optional)
Compatible with laser/inkjet printers
With pseudo-color display
Display depth: 240mm
Resolution Power: lateral 2mm, longitudinal 1mm
Probe multi-frequency conversion: 5 segment frequencies
TGC adjustment: 8 TGC adjustments
Gray scale: 256
Scanning and display mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode; 3D(optional)
Main probe: 3.5 MHz electronic convex array (frequency conversion)
Electronic focus: 4 focus of random combination
Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
Image direction: Up/down/left/right
Pseudo-color function: 8 kinds
Magnification: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Cine loop: 64, 128, 256, 512, 1024 frames (preset by user)

Standard configuration:
One mainframe unit (15 " color LCD screen)
One electronic convex array probe

Options:
7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
R/W DVD-ROM
Laser printer

Display depth: 240mm
Resolution Power: lateral 2mm, longitudinal 1mm
Probe multi-frequency conversion: 5 segment frequencies
TGC adjustment: 8 TGC adjustments
Gray scale: 256
Scanning and display mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode; 3D(optional)
Main probe: 3.5 MHz electronic convex array (frequency conversion)
Electronic focus: 4 focus of random combination
Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
Image direction: Up/down/left/right
Pseudo-color function: 8 kinds
Magnification: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Cine loop: 64, 128, 256, 512, 1024 frames (preset by user)
Body markers: a variety of body markers (30 sorts)
Display information: date, time, medical records number, magnification, measurement value, the body tag, character notes, coefficient of frame correlation, scanning depth, portfolio of probe type, conversion in both English and Chinese, full-screen character edit etc.

Measurement and calculation:
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;

Small parts: optic, thyroid, jaw and face.
DICOM3.0: medical digital imaging and communication, is the industry standards (agreement) of image and data transmission among different kinds of medical devices. Ultrasound devices could receive images and data by DICOM after being connected to PACS.
System preset: System preset includes parameter presets of OB, GYN, vascular, cardiac, urology and small parts, comments, manufacture default settings, system upgrade and maintenance settings.
Storage: large capacity of local storage and USB storage, image and cine loop, Measurement result and report can be stored.
Monitor: 14 " black-and-white SVGA progressive scanning display
Probe connector: 2
Terminal output: VGA, PAL-D video output

Size: 790mm (length) × 660mm (width) × 1070mm (height)
Weight: about 50kg

Standard:

Mobile trolley   .............................. 1Pcs
Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
R/W DVD-ROM
B/W Laser printer

Product Features

    15 " color LCD screen
    Full digital imaging technology, clear image
    PC based, abundant functions
    Broadband multi-frequency probes
    64, 128, 256, 512, 1024 frames (preset by user) cine loop
    Built-in workstation software, powerful function of information management and report
    Complete application software packages, enhanced measurement and calculation functions
    Large capacity of local storage and USB storage
    3D image function(optional)
    Compatible with laser/inkjet printers
    With pseudo-color display
    Display depth: 240mm
    Resolution Power: lateral 2mm, longitudinal 1mm
    Probe multi-frequency conversion: 5 segment frequencies
    TGC adjustment: 8 TGC adjustments
    Gray scale: 256
    Scanning and display mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode; 3D(optional)
    Main probe: 3.5 MHz electronic convex array (frequency conversion)
    Electronic focus: 4 focus of random combination
    Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
    Image direction: Up/down/left/right
    Pseudo-color function: 8 kinds
    Magnification: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
    Cine loop: 64, 128, 256, 512, 1024 frames (preset by user)

    Standard configuration:
    One mainframe unit (15 " color LCD screen)
    One electronic convex array probe

    Options:
    7.5MHz high-frequency linear array probe
    6.5MHz intra-cavity (trans-vaginal) probe
    7.5MHz rectal probe
    3.5MHz micro-convex probe
    R/W DVD-ROM
    Laser printer


Product Specifications

    Display depth: 240mm
    Resolution Power: lateral 2mm, longitudinal 1mm
    Probe multi-frequency conversion: 5 segment frequencies
    TGC adjustment: 8 TGC adjustments
    Gray scale: 256
    Scanning and display mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode; 3D(optional)
    Main probe: 3.5 MHz electronic convex array (frequency conversion)
    Electronic focus: 4 focus of random combination
    Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
    Image direction: Up/down/left/right
    Pseudo-color function: 8 kinds
    Magnification: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
    Cine loop: 64, 128, 256, 512, 1024 frames (preset by user)
    Body markers: a variety of body markers (30 sorts)
    Display information: date, time, medical records number, magnification, measurement value, the body tag, character notes, coefficient of frame correlation, scanning depth, portfolio of probe type, conversion in both English and Chinese, full-screen character edit etc.

    Measurement and calculation:
    B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
    M mode: heart rate, time, distance, slope and stenosis;
    Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
    Obstetric: gestation age, fetal weight, AFI;
    Cardiology: LV, LV function, LVPW, RVAWT;
    Urology: transition zone volume, bladder volume, RUV, prostate, kidney;

    Small parts: optic, thyroid, jaw and face.
    DICOM3.0: medical digital imaging and communication, is the industry standards (agreement) of image and data transmission among different kinds of medical devices. Ultrasound devices could receive images and data by DICOM after being connected to PACS.
    System preset: System preset includes parameter presets of OB, GYN, vascular, cardiac, urology and small parts, comments, manufacture default settings, system upgrade and maintenance settings.
    Storage: large capacity of local storage and USB storage, image and cine loop, Measurement result and report can be stored.
    Monitor: 14 " black-and-white SVGA progressive scanning display
    Probe connector: 2
    Terminal output: VGA, PAL-D video output

    Size: 790mm (length) × 660mm (width) × 1070mm (height)
    Weight: about 50kg


Related Accessories

    Standard:

    Mobile trolley   .............................. 1Pcs
    Multi frequency convex probe ...... 1Pcs
    Power Cable  ............................... 1Pcs
    Cleaning Cloth  ............................ 1Pcs

    Options:

    7.5MHz high-frequency linear array probe
    6.5MHz intra-cavity (trans-vaginal) probe
    7.5MHz rectal probe
    3.5MHz micro-convex probe
    R/W DVD-ROM
    B/W Laser printer
