EKG-3A

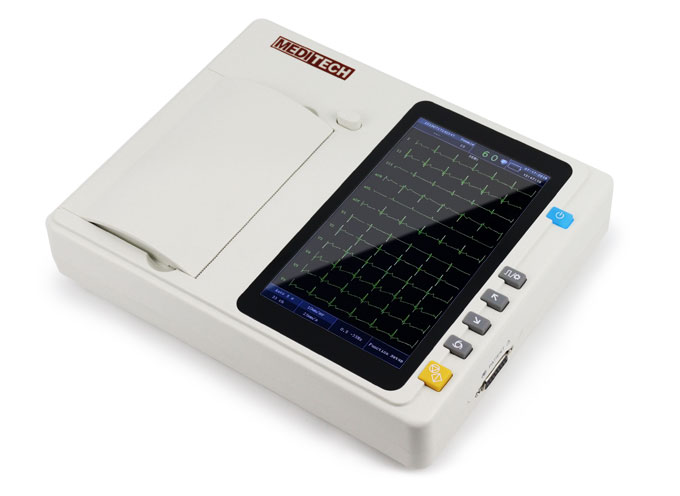

EKG-3A  ECG device
Three Channel  ECG machine ,Slim,advanced and light weight
EKG-3A  ECG device
Three Channel  ECG machine ,Slim,advanced and light weight
Read More

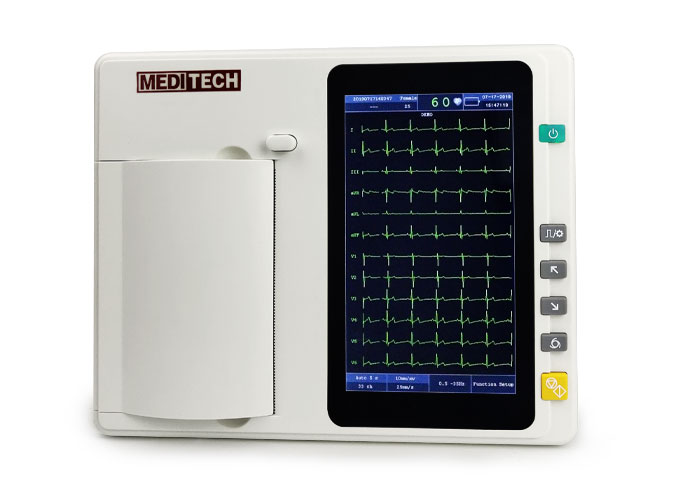

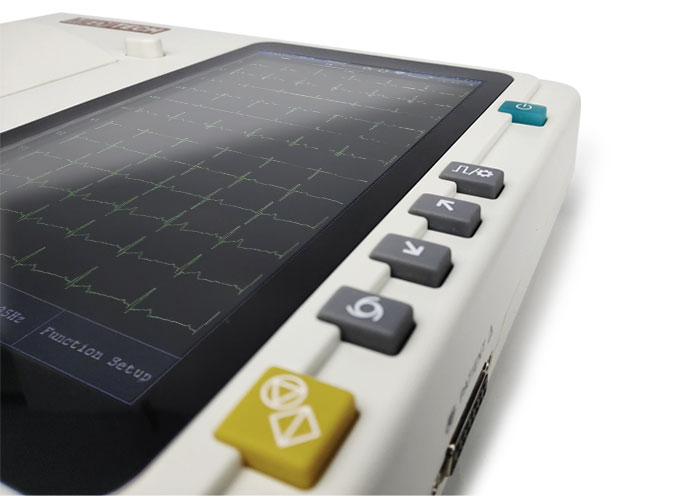

Large, Color and Touch Screen 7”.
Keyboard for Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F   .
Precise ECG auto-interpretation program.
12 lead ECG simultaneous acquisition and display.
Simultaneous 3 leads ECG printing with 80mm thermal paper.
Multiple operation mode: automatic, manual, arrhythmia analysis.
Digital filters eliminate EMG, AC, Baseline Drift interference.
Built-in rechargeable Li-ion battery, 2 hours continuous working.
Real-time ECG waveform.
External USB card store 1000 reports.
Lead-off detection.
Built in USB/RS232 interface.
Software upgrade automatically via USB.

Technical Parameter
Lead:                               Standard 12 leads;
Input circuit:                     protection against defibrillator;
Acquisition Mode:            Simultaneous 12 leads acquisition and asynchronous acquisition;
Measurement Range:      ±5mVpp;
Time Constant                 ≥3.2s;
Frequency Response:     0.05Hz~150Hz (-3dB);

Sensitivity:                       2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV;
Input Impedance              ≥50MΩ;
Input Circuit Current        ＜0.05µA;
Noise Level                      ＜15µVp-p;
Patient Current Leakage ＜10µA (220V-240V);

Filter:
EMG Filter:         25 Hz / 30 Hz / 40Hz
Low Pass Filter: 75 Hz / 100 Hz / 150Hz
DFT Filter:         0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
AC Filter:           50 Hz / 60Hz
CMRR:              100dB;

Recording Mode:
Automatic:                3CH×4+1R, 3CH×4, 6CHx2;
Manual:                    4CH, 3CH, 2CH, 1CH
Rhythm:                    Any lead selectable
Recording System:   Thermal matrix printing;
Recording Paper:      Roll 80mmx30M;
Paper Speed:            6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s;
Interface:                   Network interface, USB Master/Slave, SD card;
Safety Standard:       IEC I/CF;

Sample Rate:
Normal:                    1000sps/channel

Power Supply:
AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery

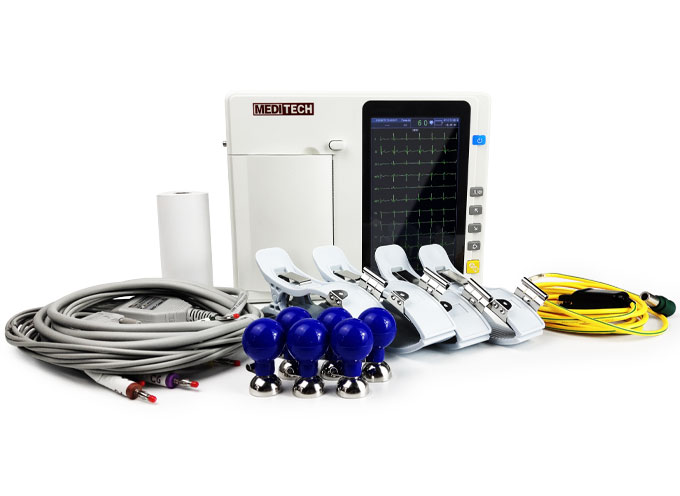

Standard:

Chest Electrode       ......... 6Pcs
Clamp Electrode    ........... 4Pcs
EKG Cable       ................. 1Pcs
Ground Wire    ..................1Pcs
Paper Role  ...................... 1Pcs
Power cable  .................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Case
Thermal Paper
Trolley
PC (Computer) accessories
Printer accessorie

Product Features

    Large, Color and Touch Screen 7”.
    Keyboard for Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F   .
    Precise ECG auto-interpretation program.
    12 lead ECG simultaneous acquisition and display.
    Simultaneous 3 leads ECG printing with 80mm thermal paper.
    Multiple operation mode: automatic, manual, arrhythmia analysis.
    Digital filters eliminate EMG, AC, Baseline Drift interference.
    Built-in rechargeable Li-ion battery, 2 hours continuous working.
    Real-time ECG waveform.
    External USB card store 1000 reports.
    Lead-off detection.
    Built in USB/RS232 interface.
    Software upgrade automatically via USB.

Product Specifications


    Technical Parameter
    Lead:                               Standard 12 leads;
    Input circuit:                     protection against defibrillator;
    Acquisition Mode:            Simultaneous 12 leads acquisition and asynchronous acquisition;
    Measurement Range:      ±5mVpp;
    Time Constant                 ≥3.2s;
    Frequency Response:     0.05Hz~150Hz (-3dB);

    Sensitivity:                       2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV;
    Input Impedance              ≥50MΩ;
    Input Circuit Current        ＜0.05µA;
    Noise Level                      ＜15µVp-p;
    Patient Current Leakage ＜10µA (220V-240V);

    Filter:
    EMG Filter:         25 Hz / 30 Hz / 40Hz
    Low Pass Filter: 75 Hz / 100 Hz / 150Hz
    DFT Filter:         0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
    AC Filter:           50 Hz / 60Hz
    CMRR:              100dB;

    Recording Mode:
    Automatic:                3CH×4+1R, 3CH×4, 6CHx2;
    Manual:                    4CH, 3CH, 2CH, 1CH
    Rhythm:                    Any lead selectable
    Recording System:   Thermal matrix printing;
    Recording Paper:      Roll 80mmx30M;
    Paper Speed:            6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s;
    Interface:                   Network interface, USB Master/Slave, SD card;
    Safety Standard:       IEC I/CF;

    Sample Rate:
    Normal:                    1000sps/channel

    Power Supply:
    AC: 100~240V, 50/60Hz, 30VA~100VA
    DC: 14.8V/2200mAh, built-in lithium battery


Related Accessories

    Standard:

    Chest Electrode       ......... 6Pcs
    Clamp Electrode    ........... 4Pcs
    EKG Cable       ................. 1Pcs
    Ground Wire    ..................1Pcs
    Paper Role  ...................... 1Pcs
    Power cable  .................... 1Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    Case
    Thermal Paper
    Trolley
    PC (Computer) accessories
    Printer accessorie
