MD100 SPO2 module connections

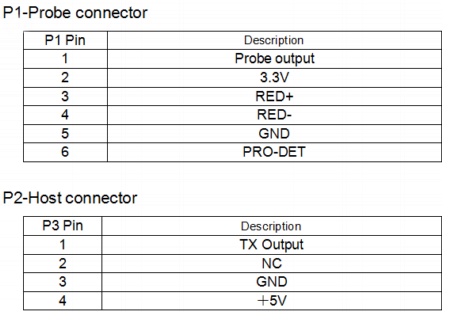

Model MD 100 SPO2 module has two connector (as in the attachment)

P1 and P2 and you will need to make a cable with 2 connectors

first end is 4 or 6 pin connector

it is 2.54 * 4P and 2.54 * 6P connector

the other end is for connecting SpO2 sensor or main board and this you will need to make it according to your need

MD100:

http://www.meditech.com.cn/OEM-module/Meditech-Modules/Digital-SpO2-module/detail

Model MD 100 SPO2 module has two connector (as in the attachment)

P1 and P2 and you will need to make a cable with 2 connectors

first end is 4 or 6 pin connector

it is 2.54 * 4P and 2.54 * 6P connector

the other end is for connecting SpO2 sensor or main board and this you will need to make it according to your need

MD100:

http://www.meditech.com.cn/OEM-module/Meditech-Modules/Digital-SpO2-module/detail
