Sonotech® 5

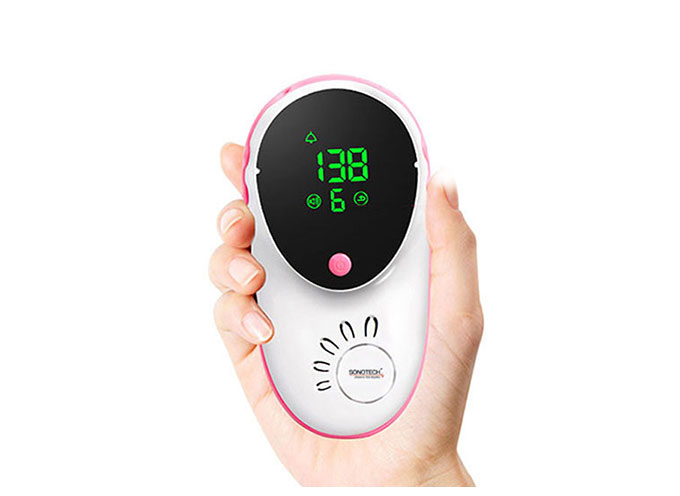

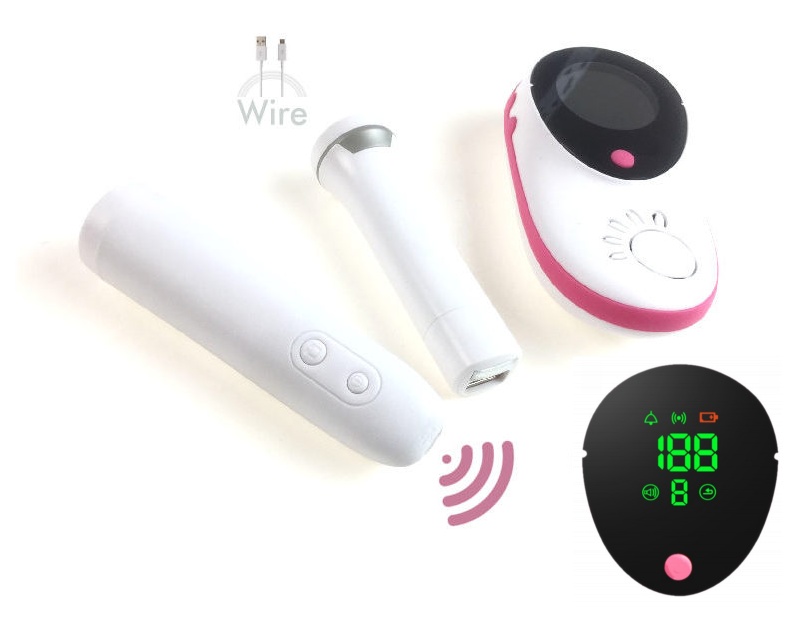

Sonotech®5 Wired probe fetal doppler

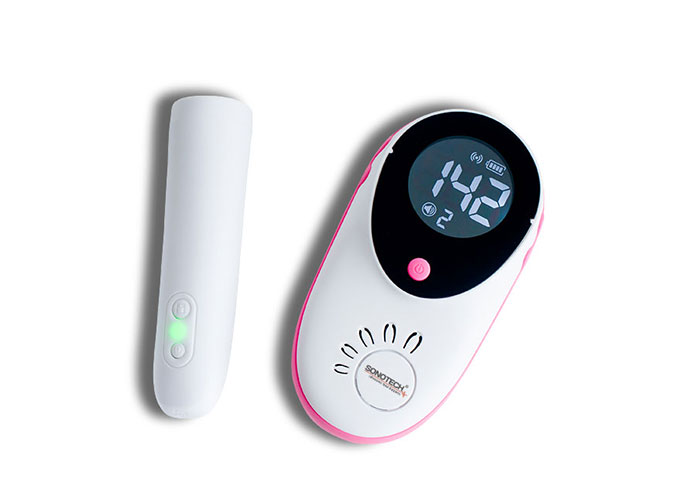

Sonotech®5W Wireless probe fetal doppler (20-30 m)

ecografia y doppler fetal,fetal doppler echo,fetal doppler for iphone
 Sonotech® 5 Probe :
 Frequancy 2.5 Mhz
 Wired probe easy to connectable by socket (in probe and main  device")
 Water proof IPX4

 Sonotech® 5W Probe :
 Frequancy 2.5 Mhz
 Wireless probe  20m (between probe and main device")
 Built in rechargeable battery
 Record function can be done by probe


Sonotech®5 Wired probe fetal doppler

Sonotech®5W Wireless probe fetal doppler (20-30 m)

ecografia y doppler fetal,fetal doppler echo,fetal doppler for iphone
 Sonotech® 5 Probe :
 Frequancy 2.5 Mhz
 Wired probe easy to connectable by socket (in probe and main  device")
 Water proof IPX4

 Sonotech® 5W Probe :
 Frequancy 2.5 Mhz
 Wireless probe  20m (between probe and main device")
 Built in rechargeable battery
 Record function can be done by probe

Read More

fetal doppler with High sensitivity and Easy to operate

Built in memory for data storage
Alarm function for ubnormal range
LCD with White Digits on a Black Background
+30 Hrs Operation on 3 AAA Alkaline Batteries
Built In Speaker (=1.8W) with buttom Volume Control
Auto Power Off on No Signal (2 min) Function

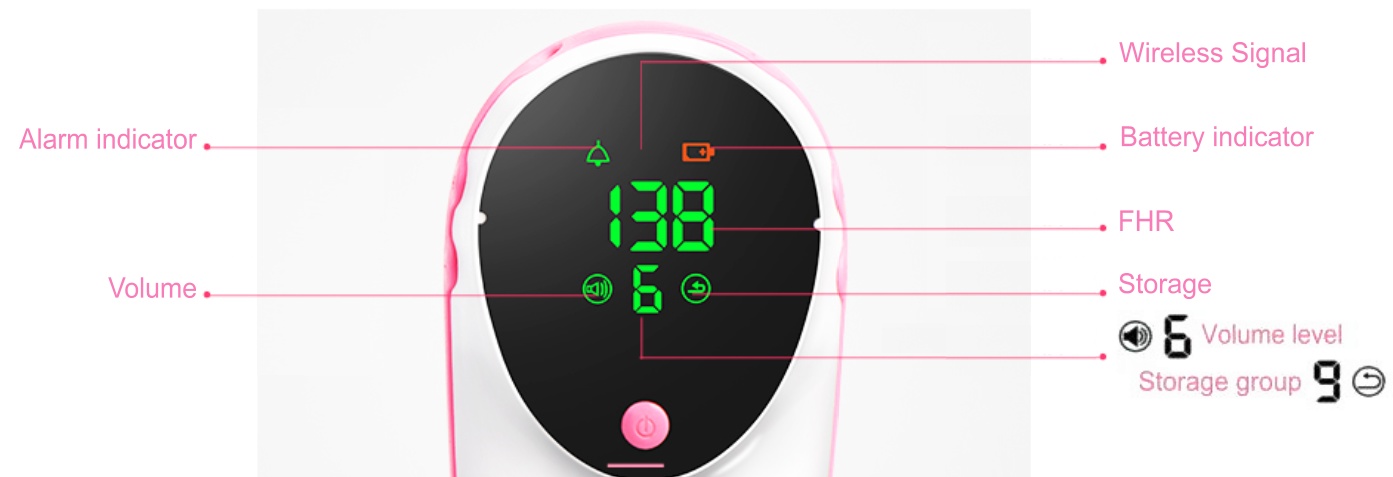

Indicator for :
Signal level (between wirless probe and the doppler)
Alarm for  ubnormal FHR(Fetal Heart Rate) range
Volume (0-6)
Battery capacity
Storage number (0-9)




wireless fetal Doppler,unborn baby`s hear recorder,ultrasonic pocket doppler


wireless fetal Doppler,Sonotech5,baby doppler

como funciona o doppler fetal,como usar o fetal doppler,ecografia fetal o doppler fetal,ecografia obstetrica y doppler fetal




Classification:
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B equipment
Harmful Liquid Proof Degree: IP×4
Suitable Using Range: Suitable for use after the 16th week of pregnancy

FHR Performance:
FHR Measuring Range:50-210BPM(Beat per minute) Resolution:1BPM
Accuracy: ±2BPM Probe:
Working Frequency:2.5MHz±10%
Output power: <10mW/cm²
Spatial-peak temporal peak acoustic pressure: <0.1Mpa
Ovearll Sensitivity: ≥90dB

Physical Characteristic:
Main device: 132mm(L)×68mm(W)×34mm(H)
Probe:
Sonotech 5     models:31mm(Ø)×103mm(H)
Sonotech 5W models:32mm(Ø)×120mm(H)
LCD Display:38mm(Ø)
Weight: About 200g (including batteries) Environment:

Working environment:
Temperature: + 5°C~ + 40°C Humidity:≤80%
Atmospheric Pressure: 70kpa ~106kpa
Transport and Storage:
Temperature:-40℃~ + 55℃ Humidity:≤90%
Atmospheric Pressure: 50kPa ~106kpa

Power:
Host Internal:1.5V Battery×3(Size:AAA) Probe
Internal:3.7V Lithium polymer battery
External:5V USB equipment

power supply.
AC/DC Adaptor:
Input:AC100~240V,50Hz/60Hz,0.2A MAX.
Output:DC 5V,1000mA,5VA.

Standard:

USB Wire      ................................... 1Pcs
         Use  for
         Sonotech® 5 : to connect the probe and the fetal doppler.
         Sonotech® 5W : to charge the wireless probe.
2.5Mhz Fetal doppler probe  ........... 1Pcs
Cleaning Cloth  ............................... 1Pcs
Audio stereo Cable   ....................... 1Pcs

Options:

Headphone
External mini Speakers
Audio smart device Cable (Android .iOs)
AAA Battery
Rechargeable Battery
Charger (Panasonic)

Product Features

    fetal doppler with High sensitivity and Easy to operate

    Built in memory for data storage
    Alarm function for ubnormal range
    LCD with White Digits on a Black Background
    +30 Hrs Operation on 3 AAA Alkaline Batteries
    Built In Speaker (=1.8W) with buttom Volume Control
    Auto Power Off on No Signal (2 min) Function



    Indicator for :
    Signal level (between wirless probe and the doppler)
    Alarm for  ubnormal FHR(Fetal Heart Rate) range
    Volume (0-6)
    Battery capacity
    Storage number (0-9)




    wireless fetal Doppler,unborn baby`s hear recorder,ultrasonic pocket doppler


    wireless fetal Doppler,Sonotech5,baby doppler

    como funciona o doppler fetal,como usar o fetal doppler,ecografia fetal o doppler fetal,ecografia obstetrica y doppler fetal



Product Specifications


    Classification:
    Anti-electroshock Type: Internally powered equipment
    Anti-electroshock Degree: Type B equipment
    Harmful Liquid Proof Degree: IP×4
    Suitable Using Range: Suitable for use after the 16th week of pregnancy

    FHR Performance:
    FHR Measuring Range:50-210BPM(Beat per minute) Resolution:1BPM
    Accuracy: ±2BPM Probe:
    Working Frequency:2.5MHz±10%
    Output power: <10mW/cm²
    Spatial-peak temporal peak acoustic pressure: <0.1Mpa
    Ovearll Sensitivity: ≥90dB

    Physical Characteristic:
    Main device: 132mm(L)×68mm(W)×34mm(H)
    Probe:
    Sonotech 5     models:31mm(Ø)×103mm(H)
    Sonotech 5W models:32mm(Ø)×120mm(H)
    LCD Display:38mm(Ø)
    Weight: About 200g (including batteries) Environment:

    Working environment:
    Temperature: + 5°C~ + 40°C Humidity:≤80%
    Atmospheric Pressure: 70kpa ~106kpa
    Transport and Storage:
    Temperature:-40℃~ + 55℃ Humidity:≤90%
    Atmospheric Pressure: 50kPa ~106kpa

    Power:
    Host Internal:1.5V Battery×3(Size:AAA) Probe
    Internal:3.7V Lithium polymer battery
    External:5V USB equipment

    power supply.
    AC/DC Adaptor:
    Input:AC100~240V,50Hz/60Hz,0.2A MAX.
    Output:DC 5V,1000mA,5VA.

Related Accessories

    Standard:

    USB Wire      ................................... 1Pcs
             Use  for
             Sonotech® 5 : to connect the probe and the fetal doppler.
             Sonotech® 5W : to charge the wireless probe.
    2.5Mhz Fetal doppler probe  ........... 1Pcs
    Cleaning Cloth  ............................... 1Pcs
    Audio stereo Cable   ....................... 1Pcs

    Options:

    Headphone
    External mini Speakers
    Audio smart device Cable (Android .iOs)
    AAA Battery
    Rechargeable Battery
    Charger (Panasonic)
