External Mainstream EtCo2 module

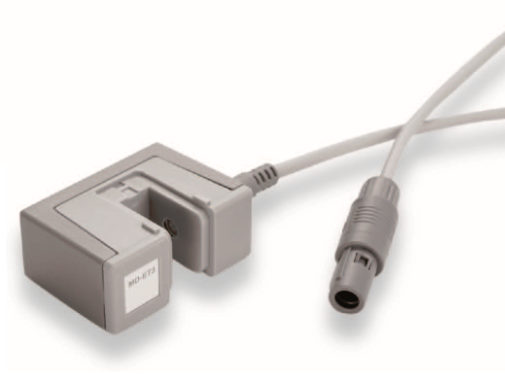

MD ET3 Meditech Mainstream CO2 Sensor is designed for mainstream measurements using sophisticated infrared absorption spectroscopy to measure ETCO2 with mainstream,

Read Less

MD ET3 Meditech Mainstream CO2 Sensor is designed for mainstream measurements using sophisticated infrared absorption spectroscopy to measure ETCO2 with mainstream,

Preferred choice for intubated patients
Rugged solid state with no moving parts
Lightweight & compact design
Fast accurate on airway measurement
No calibration required
Disposable & reusable airway adapters for all patients
Private label option

Transducer Type	Mainstream CO2 Sensor
Principle of Operation	Infrared Spectroscopy
Energy Emitting Device	Proprietary High Efficiency IR Source
Energy Detecting Device	Frequency Stable Thermopile
CO2 Measurement Range	0% to 20%
CO2 Resolution	0.1 mm Hg 0 to 49 mm Hg 0.2 mm Hg 50 to 150 mm Hg
CO2 Accuracy	±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS)
Dimensions	50mm22mm36mm
Weight	< 40g
Breath Rate Range	2 to 150 Breaths Per Minute (BPM)
Respiratory Rate Accuracy	±1 breath
Calibration	No routine user calibration required, but module can be calibrated by user
Data Interface	Highly configurable serial digital interface (TTL/RS232 Level)
Data Output	CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate.
Input Voltage	5.0 VDC ±5%
Power Consumption	400mW
Warm-up Time	10 seconds
Response Time	Detector: 20mSec (Typical)
	System: 200mSec(Typical)
Operating Temperature	5℃ to 50℃
Shipping/Storage Temperature Range	-40℃ to 70℃
Interconnection	Standard Lemo Redel 8-pin plastic Material PSU Sensor Plug: PAB.M0.8GL.AC39GZ Band Relief: GMA.1B.030.DJ Host Receptacle: PKB.M0.8GL.LJ Note: Pin out: 1 VA 5.0V 2 Shield Shield 3 DGND Digital return 4 VA 5.0V 5 TxD Serial data from the Module 6 RxD Serial data from Host 7 AGND Analog return 8 NC
Shock Impact	IEC TR 6 0721-4-7 Class 7M3 (designed to withstand environments subject to significant vibrations or high shock levels) EN6 0068-2-27 Shock EN60068-2-64 Random vibration
Regulatory	Designed to meet IEC 6 0601-1-2 , EN55011 .CISPIR 11 Class B (Radiated and Conductive Emissions), IEC 6 1000-4-2 Electrostatic Discharge Immunity, IEC 6 1000-4-3 Radiated Immunity, Designed to comply with 93/42/EEC (MDD CE Marking), FDA Standards, Minimum Performance and Safety Requirements for Comptometers and ISO21647. Medical Electrical Equipment performance requirements for the basic safety and essential performance of respiratory gas monitors.

Product Features

Product Specifications

Transducer Type	Mainstream CO2 Sensor
Principle of Operation	Infrared Spectroscopy
Energy Emitting Device	Proprietary High Efficiency IR Source
Energy Detecting Device	Frequency Stable Thermopile
CO2 Measurement Range	0% to 20%
CO2 Resolution	0.1 mm Hg 0 to 49 mm Hg 0.2 mm Hg 50 to 150 mm Hg
CO2 Accuracy	±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS)
Dimensions	50mm22mm36mm
Weight	< 40g
Breath Rate Range	2 to 150 Breaths Per Minute (BPM)
Respiratory Rate Accuracy	±1 breath
Calibration	No routine user calibration required, but module can be calibrated by user
Data Interface	Highly configurable serial digital interface (TTL/RS232 Level)
Data Output	CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate.
Input Voltage	5.0 VDC ±5%
Power Consumption	400mW
Warm-up Time	10 seconds
Response Time	Detector: 20mSec (Typical)
	System: 200mSec(Typical)
Operating Temperature	5℃ to 50℃
Shipping/Storage Temperature Range	-40℃ to 70℃
Interconnection	Standard Lemo Redel 8-pin plastic Material PSU Sensor Plug: PAB.M0.8GL.AC39GZ Band Relief: GMA.1B.030.DJ Host Receptacle: PKB.M0.8GL.LJ Note: Pin out: 1 VA 5.0V 2 Shield Shield 3 DGND Digital return 4 VA 5.0V 5 TxD Serial data from the Module 6 RxD Serial data from Host 7 AGND Analog return 8 NC
Shock Impact	IEC TR 6 0721-4-7 Class 7M3 (designed to withstand environments subject to significant vibrations or high shock levels) EN6 0068-2-27 Shock EN60068-2-64 Random vibration
Regulatory	Designed to meet IEC 6 0601-1-2 , EN55011 .CISPIR 11 Class B (Radiated and Conductive Emissions), IEC 6 1000-4-2 Electrostatic Discharge Immunity, IEC 6 1000-4-3 Radiated Immunity, Designed to comply with 93/42/EEC (MDD CE Marking), FDA Standards, Minimum Performance and Safety Requirements for Comptometers and ISO21647. Medical Electrical Equipment performance requirements for the basic safety and essential performance of respiratory gas monitors.
