The Anesthesia Agent Analyzer Kits.Handheld Multi- Gas Analyzer Capnoxi® Plus AG

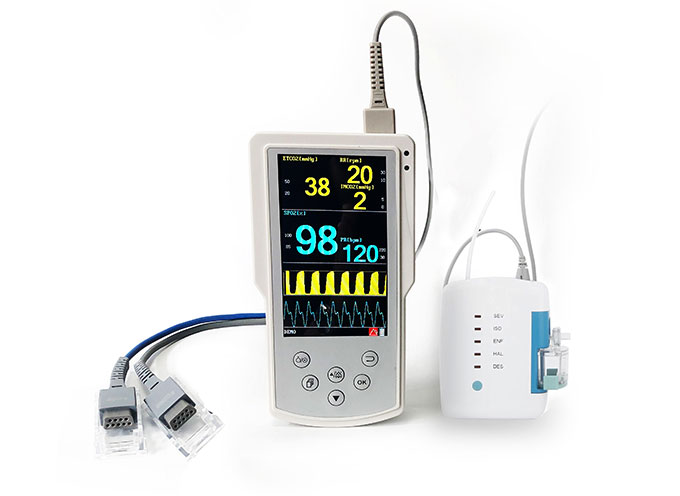

Hand-held Multi-Gas Analyzer Capnoxi® Plus AG

Capnoxi® plus AG

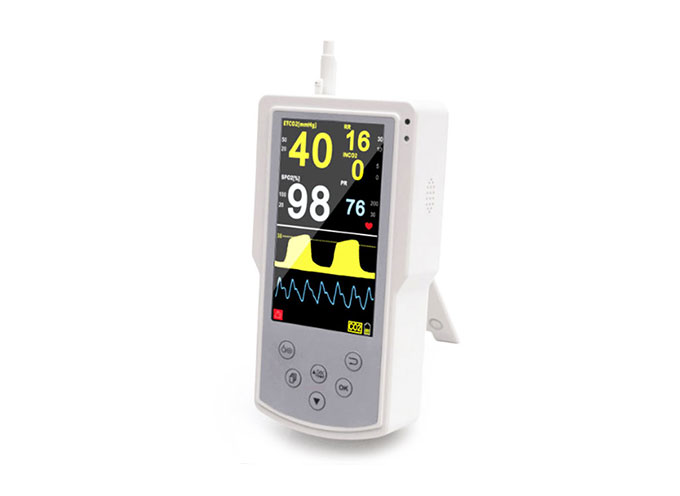

Handheld EtCO2 monitor Detecting gas: EtCO2, FiCO2, RR,EtN2O, FiN2O, EtAA, FiAA. High Precision.

Read Less

Capnoxi® plus AG
Handheld EtCO2 monitor Detecting gas: EtCO2, FiCO2, RR,EtN2O, FiN2O, EtAA, FiAA. High Precision.
anesthesia agent analyzer used to measure EtCO2, FiCO2, RR, EtN2O, FiN2O, EtAA, FiAA.

anesthesia agent analyzer used to measure EtCO2, FiCO2, RR, EtN2O, FiN2O, EtAA, FiAA.

CE narked

Made by ABS

Not made with natural rubber latex

Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
Update 255-hour historical data replay on PC through USB
Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
Suitable for clinical and emergency circumstance
SpO2, SpO2+CO2 selectable

Software Function
Professional Data Analysis Software for CO2 Monitoring
Connecting the palm monitor to PC through USB
Storing Unlimited patient’s data
Displaying ETCO2，SPO2 Trends Table
Controlling PC printer, outputting trend graph, trend table report
Recording and storage object’s respiration details in clinical

Inside Pump Made by

Main Unit’s Environment Requirement
Working: Temperature: 5℃~50℃;
Relative humidity: 0~95%;
Atmosphere Pressure: 70.0KPa~106.0KPa
Storage: Temperature: 0℃~70℃;
Relative humidity: 0~95%;
Atmosphere Pressure: 22.0KPa~120.0KPa

LED
Patient Alarm Indicator: Two colors: Yellow and Red
Sound Indicator
Loudspeaker: Play alarm voices

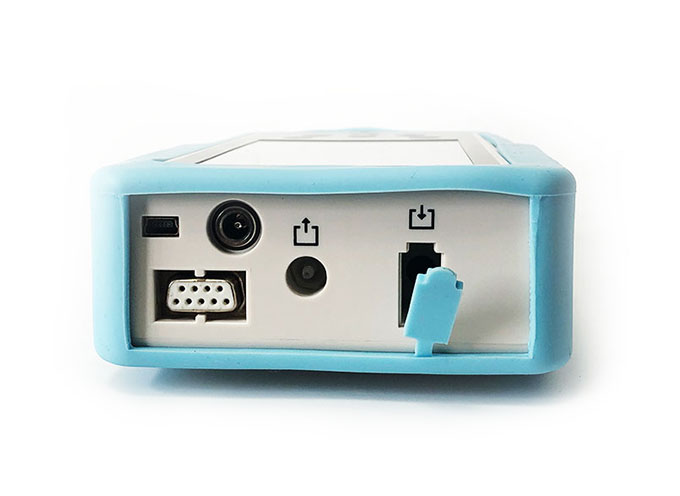

Interfaces

Power: 12VDC power socket x 1

USB: MINI USB socket x 1

Measurement Specification
Principle: NDIR single beam optics
Sampling Rate: 90mL/min, ±10mL/min
Initialization Time: Waveform displaying in 20 seconds

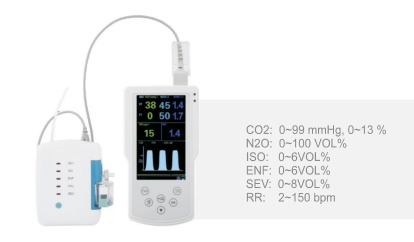

Range
CO2: 0~99 mmHg, 0~13 %
N2O: 0~100 VOL%
ISO: 0~6VOL%
ENF: 0~6VOL%
SEV: 0~8VOL%
RR: 2~150 bpm

Resolution
CO2: 0~40 mmHg ±2 mmHg
       40 ~99 mmHg ±5% of reading

N2O: 0~100VOL%
     ±(2.0 vol% +5% of reading)

ISO: 0~6VOL%
      ±(0.3 vol% +2% of reading)

ENF: 0~6VOL%
      ±(0.3 vol% +2% of reading)

SEV: 0~8VOL%
     ±(0.3 vol% +2% of reading)

RR: ±1 bpm
Apnea Alarm Time: 20~60s

MAC value defines

1.0MAC: under an atmospheric pressure condition, give a person or animal skin stimulation, 50% of people or animals not body dynamic response or escape reflection occurs, the inhalation anesthetics in alveolar concentration.

To achieve 95% of people don’t respond to stimuli, the MAC value should reach to 1.3.

When MAC value is 0.4，most patients will wake up.

Anesthetic agents
Enflurane: 1.68
Isoflurane: 1.16
Sevoflurane: 1.71
Halothane: 0.75
N2O:    100%
Notice Desflurane’s MAC1.0 values differ with age
Age: 18-30 MAC 1.0 7.25%
Age: 31-65 MAC 1.0 6.0%

Power Specification
Input Voltage: 12V DC
Input Current: 2.0 A

Physical Specification
Main Unit
Weight: 0.65Kg
Dimension: 192mm x 106mm x 44mm

Hardware Specification
TFT Screen
Type: Colorful TFT LCD
Dimension: 5.0 inch

Battery
Quantity: 4
Model: Rechargeable lithium battery
Voltage: 3.7 V
Capacity: 2200mAh
Working time: 10 hours
Recharging time: 4 Hours
