S8i

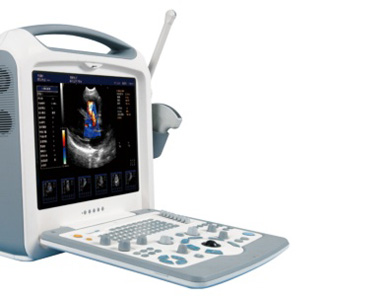

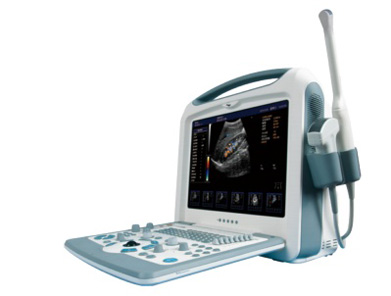

S8i Color Portable Ultrasound Scanner
Application: Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

Image processing: THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composite processing of tissue and blood flow image

Measurement & report packages: GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.

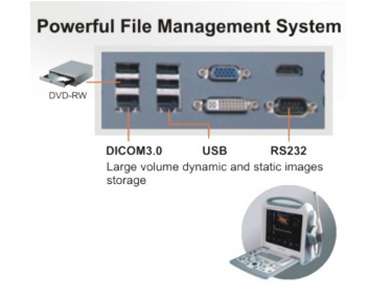

Input/output interface: VGA, network, 4 USB, 2 probe interface, DVD-ROM, SONY print with USB port
It applies cutting-edge technologies; incorporate sophisticated features like real-time 4D, TDI, and TEE scanning into one compact box.
S8i Color Portable Ultrasound Scanner
Application: Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

Image processing: THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composite processing of tissue and blood flow image

Measurement & report packages: GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.

Input/output interface: VGA, network, 4 USB, 2 probe interface, DVD-ROM, SONY print with USB port
It applies cutting-edge technologies; incorporate sophisticated features like real-time 4D, TDI, and TEE scanning into one compact box.
Read More
Displaying mode
B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D,duplex, triplex, part zoom, CFM, CPA

Signal processing:
Full-digital  beam  forming,  dynamic  filter,  space-time  filter,  dynamic  real  time
Receiving  focusing,  RDA,  DRA,  spectral  processing,  CFM  processing,  gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing,
Dynamic aperture in all fields

Image conversion
Up/down conversion
Left/right conversion

Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Area changeable angle changeable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable

Image processing:
Gain control
TGC, PW Gain, CFM gain

General measurement
B mode-distance, circumference, area, volume, ration, angle, %stenosis, histogram
M mode- distance, time, velocity, heart rate

OB packages:
EDD table :GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI, GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve
OB measuring and calculation report
Uterine measurement (Cervical length, endometrial thickness, uterine volume)

Comes with
Multi frequency convex probe
Multi frequency linear probe

Optional modules
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module

Optional probes
Micro-convex array Transvaginal probe
Micro-convex probe
Linear probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)

Optional Accessories
Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe


Standard:

Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

Mobile trolley
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module
Micro-convex array Transvaginal Probe
Micro-convex Probe
Linear Probe
Volume Probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)
Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe

Product Features

    Displaying mode
    B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D,duplex, triplex, part zoom, CFM, CPA

    Signal processing:
    Full-digital  beam  forming,  dynamic  filter,  space-time  filter,  dynamic  real  time
    Receiving  focusing,  RDA,  DRA,  spectral  processing,  CFM  processing,  gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing,
    Dynamic aperture in all fields

    Image conversion
    Up/down conversion
    Left/right conversion

    Doppler Sound output volume adjustable
    Wall filter adjustable
    Base line adjustable
    Sampling frame adjustable
    Area changeable angle changeable
    Spectrum sampling volume adjustable
    Spectrum sampling volume angle adjustable
    PRF adjustable

    Image processing:
    Gain control
    TGC, PW Gain, CFM gain

    General measurement
    B mode-distance, circumference, area, volume, ration, angle, %stenosis, histogram
    M mode- distance, time, velocity, heart rate

    OB packages:
    EDD table :GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI, GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve
    OB measuring and calculation report
    Uterine measurement (Cervical length, endometrial thickness, uterine volume)

    Comes with
    Multi frequency convex probe
    Multi frequency linear probe

    Optional modules
    CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
    Smart3D module (for 3 dimensions with 2D standard convex probe)
    “iScape View” module
    DICOM 3.0 module

    Optional probes
    Micro-convex array Transvaginal probe
    Micro-convex probe
    Linear probe
    Intdo rectal linear probe
    Phased array probe 2P2 (for cardiac applies)

    Optional Accessories
    Footswitch by USB port
    Biopsy guide for convex probe
    Biopsy guide for micro-convex probe
    Biopsy guide for linear probe
    Biopsy guide for micro-convex TV probe
    Biopsy guide for intrarectal linear probe

Product Specifications


Related Accessories

    Standard:

    Multi frequency convex probe ...... 1Pcs
    Power Cable  ............................... 1Pcs
    Cleaning Cloth  ............................ 1Pcs

    Options:

    Mobile trolley
    CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
    Smart3D module (for 3 dimensions with 2D standard convex probe)
    “iScape View” module
    DICOM 3.0 module
    Micro-convex array Transvaginal Probe
    Micro-convex Probe
    Linear Probe
    Volume Probe
    Intdo rectal linear probe
    Phased array probe 2P2 (for cardiac applies)
    Footswitch by USB port
    Biopsy guide for convex probe
    Biopsy guide for micro-convex probe
    Biopsy guide for linear probe
    Biopsy guide for micro-convex TV probe
    Biopsy guide for intrarectal linear probe
