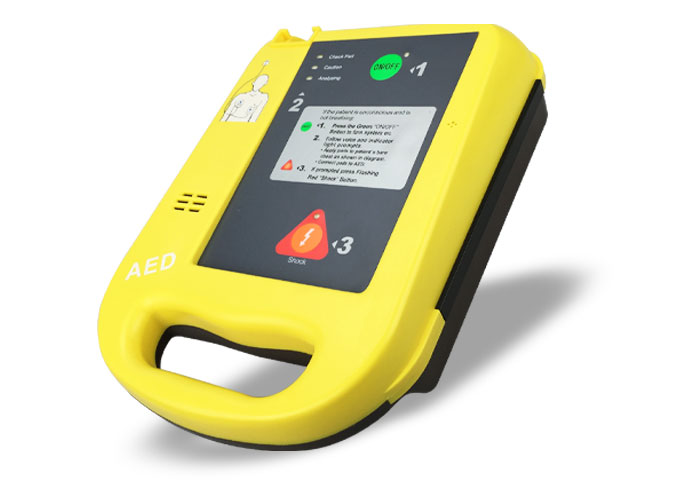

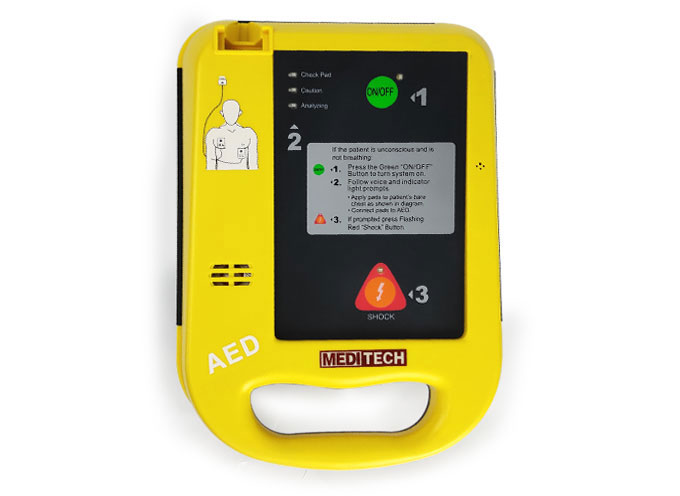

Defi® 5
Defi® 5 Automatic External Defibrillator "AED" is a safe, easy to use defibrillation device. The unit is lightweight and mobile and can be used in situations where there could be several minutes before the arrival of advanced life support (ALS) personnel.

Defi5 recognizes ventricular fibrillation and other ventricular tachycardia and guides operators through the defibrillation process. When properly connected to a patient who is unconscious, not breathing,and without a pulse.
Defi® 5 Automatic External Defibrillator "AED" is a safe, easy to use defibrillation device. The unit is lightweight and mobile and can be used in situations where there could be several minutes before the arrival of advanced life support (ALS) personnel.

Defi5 recognizes ventricular fibrillation and other ventricular tachycardia and guides operators through the defibrillation process. When properly connected to a patient who is unconscious, not breathing,and without a pulse.
Read More
 Automatic External Defibrillator features include:
Three-step defibrillation process
Two-button operation

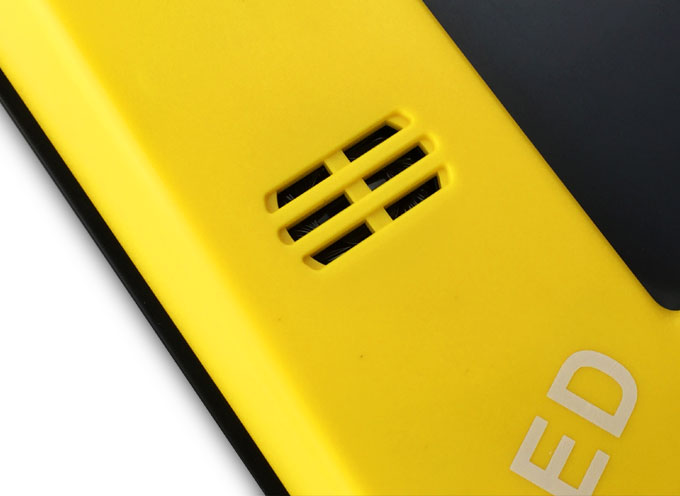

Extensive voice and visual prompts for the operator
Biphasic energy output
Lock-out protection to prevent inadvertent defibrillation
Device has an internal memory(60 hours)
ECG signals and events can be transferred to the computer.
Defi5 AED is provided with carrying case.
Device has a carrying handle for easy carrying.
It has long-life disposable LiMnO2 type battery. Battery life of at least 5 years.  and  Defi5 AED can work also with rechargeable battery.

AED Storage Software (Option)

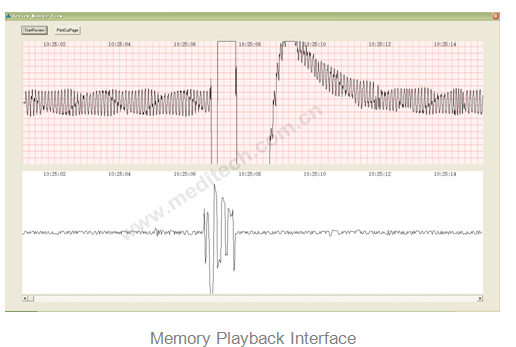

Its used to assist upper supervisory system of Automatic External Defibrillator DEFI and support transmission of storage data from lower control system of DEFI. It is used for event documentation, display of real-time ECG, voice prompts waveform, display of voice prompts and print of selected waveforms.
AED defibrillator software

More Details




Physical
Category Specification
Dimensions 303 x 216 x 89 mm
Weight 2.0 kg
Operating Temperature 0℃ to 40℃
Operating Humidity Relative humidity between 30% and 95% (non-condensing)
Storage Temperature
(without battery)		 -20℃ to 55℃
Storage Humidity
(without battery)		 Up to 93% (non-condensing)

Electrical Isolation

Category Specification
Power Unit operates on internal battery only
External Electrical Connections No external devices are attached to the unit
Risk Current Category Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)


Defibrillator
Specification
Biphasic Truncated exponential
150, 150, 200J
10 sec. to 150J
15 sec. to 200 J
9 sec.
Less than 30 seconds
Less than 35 seconds
Less than 25 seconds
22 audible prompts
LED prompts
Two buttons - On/Off, Shock
±15% into any impedance from 25 to 175Ω
20Ω to 200Ω

Waveform details
The table below provides details of the biphasic truncated exponential waveform delivered by the DEFI5 (set to 200J) when connected to resistive loads of 25 through 175 Ohms. The waveforms are characterized by typical values for peak current (Ip), duration of the first output phase, and duration of the second output phase. Values are within 10%.



Output Energy
(J)		 Patient Impedance
(Ω)		 Ip1
(Amps)		 Ip2
(Amps)		 Phase1
(ms)		 Phase2
(ms)		 Interval
(ms)
200 25 53.6 36.0 5.5 3.3 0.7
50 27.8 17.5 10.9 6.6 0.7
75 18.2 12.0 16.3 8.9 0.7
100 13.4 9.0 19.7 9.6 0.7
125 10.5 7.2 20.5 11.2 0.7
150 8.6 6.0 21.6 10.4 0.7
175 8.2 6.1 21.8 11.2 0.7

Standard:

AED Pad      .................... 1Pcs
Battery   ...........................1Pcs
AED Case  ...................... 1Pcs
Cleaning Cloth  ................1Pcs

Options:

AED Pad for Child
AED Cabinet

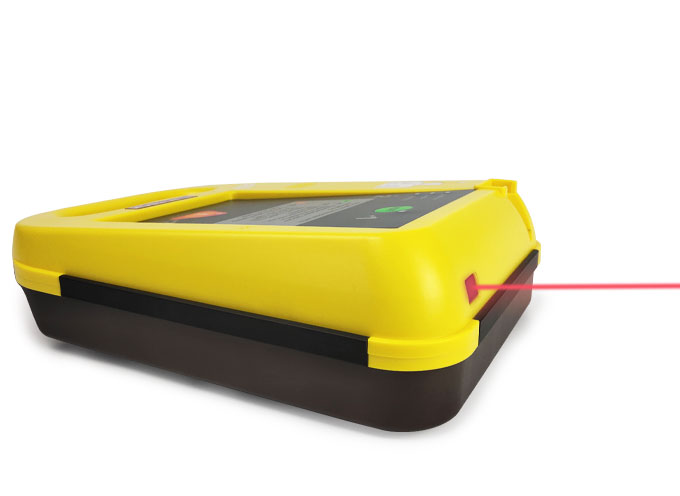

IrDA USB Adapter for ECG Data transfer

CD Software  for ECG Data transfer

Product Features

     Automatic External Defibrillator features include:
    Three-step defibrillation process
    Two-button operation
    Extensive voice and visual prompts for the operator
    Biphasic energy output
    Lock-out protection to prevent inadvertent defibrillation
    Device has an internal memory(60 hours)
    ECG signals and events can be transferred to the computer.
    Defi5 AED is provided with carrying case.
    Device has a carrying handle for easy carrying.
    It has long-life disposable LiMnO2 type battery. Battery life of at least 5 years.  and  Defi5 AED can work also with rechargeable battery.

    AED Storage Software (Option)
    Its used to assist upper supervisory system of Automatic External Defibrillator DEFI and support transmission of storage data from lower control system of DEFI. It is used for event documentation, display of real-time ECG, voice prompts waveform, display of voice prompts and print of selected waveforms.
    AED defibrillator software

    More Details



Product Specifications


    Physical
    Category Specification
    Dimensions 303 x 216 x 89 mm
    Weight 2.0 kg
    Operating Temperature 0℃ to 40℃
    Operating Humidity Relative humidity between 30% and 95% (non-condensing)
    Storage Temperature
    (without battery)    		 -20℃ to 55℃
    Storage Humidity
    (without battery)    		 Up to 93% (non-condensing)

    Electrical Isolation

    Category Specification
    Power Unit operates on internal battery only
    External Electrical Connections No external devices are attached to the unit
    Risk Current Category Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)


    Defibrillator
    Specification
    Biphasic Truncated exponential
    150, 150, 200J
    10 sec. to 150J
    15 sec. to 200 J
    9 sec.
    Less than 30 seconds
    Less than 35 seconds
    Less than 25 seconds
    22 audible prompts
    LED prompts
    Two buttons - On/Off, Shock
    ±15% into any impedance from 25 to 175Ω
    20Ω to 200Ω

    Waveform details
    The table below provides details of the biphasic truncated exponential waveform delivered by the DEFI5 (set to 200J) when connected to resistive loads of 25 through 175 Ohms. The waveforms are characterized by typical values for peak current (Ip), duration of the first output phase, and duration of the second output phase. Values are within 10%.



    Output Energy
    (J)    		 Patient Impedance
    (Ω)    		 Ip1
    (Amps)    		 Ip2
    (Amps)    		 Phase1
    (ms)    		 Phase2
    (ms)    		 Interval
    (ms)
    200 25 53.6 36.0 5.5 3.3 0.7
    50 27.8 17.5 10.9 6.6 0.7
    75 18.2 12.0 16.3 8.9 0.7
    100 13.4 9.0 19.7 9.6 0.7
    125 10.5 7.2 20.5 11.2 0.7
    150 8.6 6.0 21.6 10.4 0.7
    175 8.2 6.1 21.8 11.2 0.7
