HeartRec® Lite
HeartRec® Lite Holter ECG is intended for patients requiring ambulatory (Holter) monitoring.
light weigh,large capacity and very professional Software.
HeartRec® Lite Holter ECG is intended for patients requiring ambulatory (Holter) monitoring.
light weigh,large capacity and very professional Software.
Read More
HeartRec Holter Monitoring System from Meditech

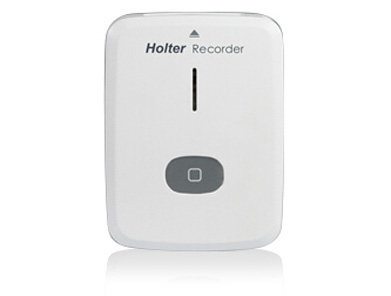

 ECG Holter recorder
Automatic Duplex Operation: 12 Channel (10-wire cable),
                                               03 Channel  (5-wire or 7-wire selectable )
Compact size light weight
Fully programmable high Fidelity research grade performance
Lower power consumption
Lightning data transfer
Pacemaker detection
Up to 7 days recording

Channels: (Two Work Modes)
12-lead / 3-Channel Switchable by Changing Patient Cable 10-Wire Cable
12-Lead: I II III aVR aVL aVF V1 - V6 5-Wire or 7-Wire

Two models Avalable:
03 Channel
12 Channel

Program able Recording:
Time: 24h-72h for12 channel and up to 7 days for 3 Channel
Sampling Rate: 128—1024/ch/s up to 10000/ch/s Resolution: 12-16 bits
Independent Pace Maker Channel

High Quality Recording:
Frequency Response: 0.05~60Hz CMMR: >80dB
Input Impedance: >5MΩ

Double Work Modes in Data Access:
Removable SD Card: 512MB/1GB/ 2GB USB connector

Low Power Consumption:
One AAA Battery: up to 7 days for 3-Channel

Compact Size & Light Weight:
72mm×53mm×16mm (2.8"×2.0"×0.63")
48g (1.7oz.) battery not included
Standard:

EKG Cable       ................ 1Pcs
Plastic Case   .................. 1Pcs
Leather Case ................... 1Pcs
Battery   ........................... 2Pcs
SD Card    ....................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Rechargable Battery
Charger (Panasonic)


Product Features

    HeartRec Holter Monitoring System from Meditech

     ECG Holter recorder
    Automatic Duplex Operation: 12 Channel (10-wire cable),
                                                   03 Channel  (5-wire or 7-wire selectable )
    Compact size light weight
    Fully programmable high Fidelity research grade performance
    Lower power consumption
    Lightning data transfer
    Pacemaker detection
    Up to 7 days recording


Product Specifications

    Channels: (Two Work Modes)
    12-lead / 3-Channel Switchable by Changing Patient Cable 10-Wire Cable
    12-Lead: I II III aVR aVL aVF V1 - V6 5-Wire or 7-Wire

    Two models Avalable:
    03 Channel
    12 Channel

    Program able Recording:
    Time: 24h-72h for12 channel and up to 7 days for 3 Channel
    Sampling Rate: 128—1024/ch/s up to 10000/ch/s Resolution: 12-16 bits
    Independent Pace Maker Channel

    High Quality Recording:
    Frequency Response: 0.05~60Hz CMMR: >80dB
    Input Impedance: >5MΩ

    Double Work Modes in Data Access:
    Removable SD Card: 512MB/1GB/ 2GB USB connector

    Low Power Consumption:
    One AAA Battery: up to 7 days for 3-Channel

    Compact Size & Light Weight:
    72mm×53mm×16mm (2.8"×2.0"×0.63")
    48g (1.7oz.) battery not included

Related Accessories

    Standard:

    EKG Cable       ................ 1Pcs
    Plastic Case   .................. 1Pcs
    Leather Case ................... 1Pcs
    Battery   ........................... 2Pcs
    SD Card    ....................... 1Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    Rechargable Battery
    Charger (Panasonic)
