MD9015T
MD9015Touch screen 15 inch patient monitor 192-hour trend graph,1000 group of blood pressure list,ST segment measurements, arrhythmia analysis and more functions,
Support up to 32 TCP/IP network connection,composed of a central information system..

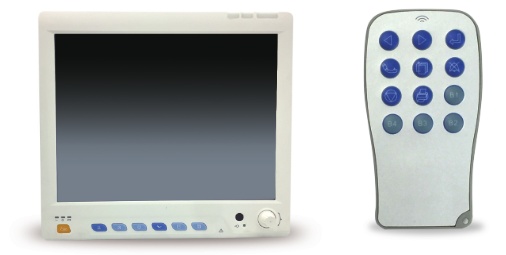

Comes with remote control


Masimo spo2 module (Option)
MD9015Touch screen 15 inch patient monitor 192-hour trend graph,1000 group of blood pressure list,ST segment measurements, arrhythmia analysis and more functions,
Support up to 32 TCP/IP network connection,composed of a central information system..
Comes with remote control


Masimo spo2 module (Option)
Read More

Contact Us

for more information

MEDITECH LIBRARY

  • ·
  • ·
  • ·
  • ·
  • ·
  • ·
  • ·
  • ·
  • ·
  • ·
View More

Need More Informations？

we are making it easier, more clearly and understandable

Meditech Videos

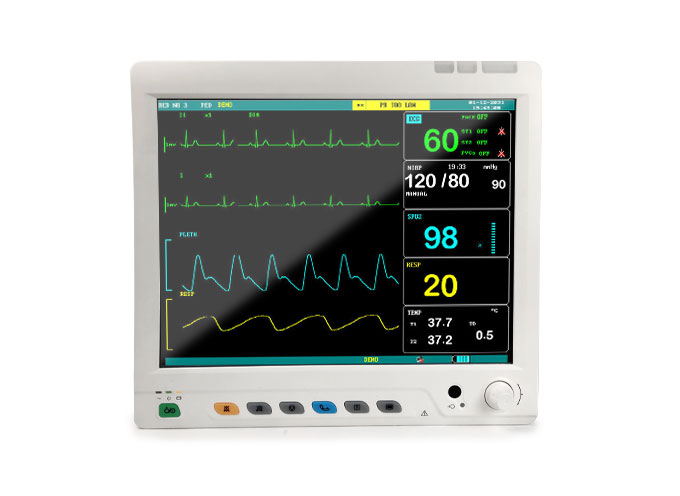

15” high resolution color TFT display with maximum 13 waveforms
Full touch-screen enables intuitive operation by clicking on the specific parameters
of the waveform in real time, standard configuration includes the navigation knob
Pacemaker detection, electrosurgical interference proof
Defibrillation protection and defibrillation synchronization
SD Card slot enable memory extension for large data storage

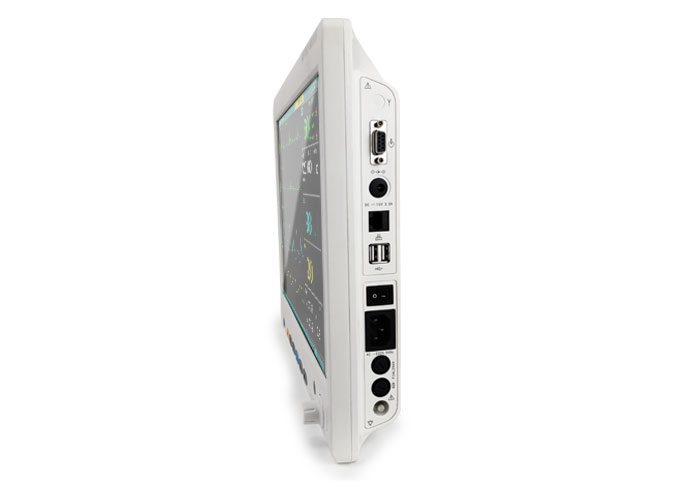

USB and serial port enable abundant future upgrades
VGA output and Analog output
OxyCRG available to judge the respiration and circulation function for neonate
Large font display
Arrhythmia and S-T segment analysis
Built-in rechargeable Li-ion (6hours maximum with 2x 4200mAh batteries)
Nurse Call function and bi-directional communication with MFM-CMS central station
Multi language: English/Simplified Chinese/Traditional Chinese/Spanish/Czech/Italian/Polish/French/German/Brazilian/Portugese/Russian.
Standard configuration: 3/5-lead ECG, NIBP, SpO2, RESP, 2-Temp, PR
Optional: 12-lead ECG, Nellcor-SpO2, Omron NIBP, 2-IBP/4-IBP, Mainstream/Side stream CO2,
CO, Multi-Gas, Full Touch Screen, Thermal Recorder, WLAN Accessory
Large Data Storage: 120 hours graphic and tabular trends of all parameters; 1200 sets of NIBP
 measurement and 70 alarm events; 2-USB ports and SC card slot ensure data storage/function upgrades.
Clinical data can be viewed and managed via Patientcare viewer software (To be released)
Clinical network: bi-directional communication with CMS-2000 central station by wired or wireless connection

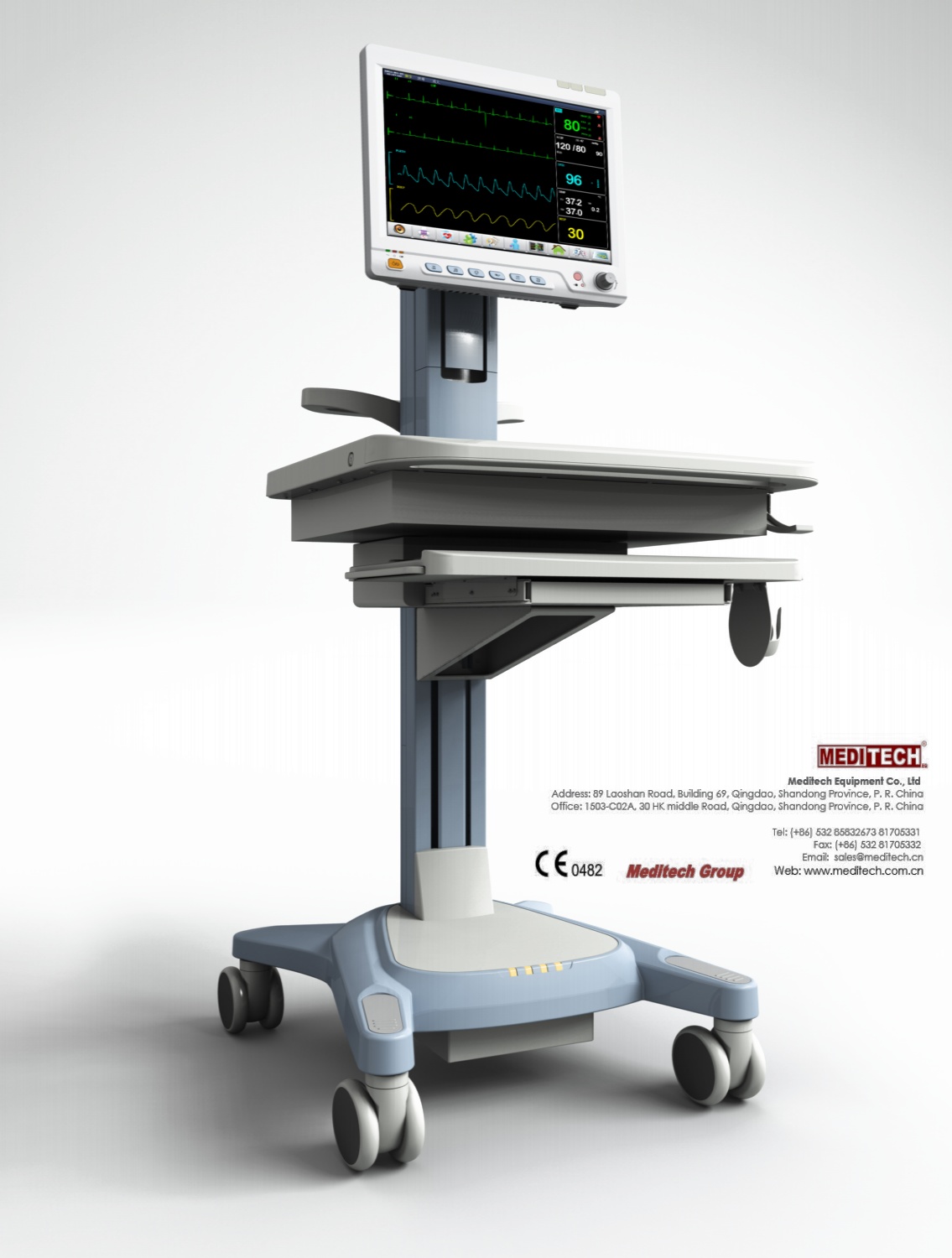

Complete and flexible mounting solution for ICU and operation room. High-end parameters for more flexible clinical applications.


MD9015T Support:
DC power input and to adapt to a variety of environmental conditions
External recorder can print the recorded waveform data and other information in real time
External the EtCO2 interface can be connected to the mainstream CO2 module to facilitate the clinical needs
Drug concentration in titration calculations to support the event functions to customize and record
Up to 32 TCP / IP network connection composed of a central information system
Wireless networking
15 inch touch screen patient monitor,Slim patient monitor ,Meditech patient monitor

Options
Invasive Blood Pressure (IBP)
Carbon dioxide (CO2) Module
Masimo SpO2 Module
Thermal Printer
