Sonovet

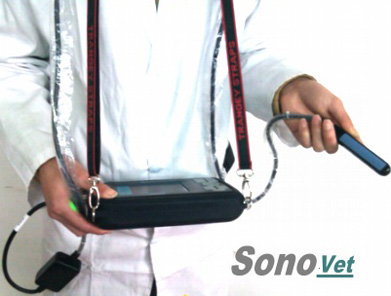

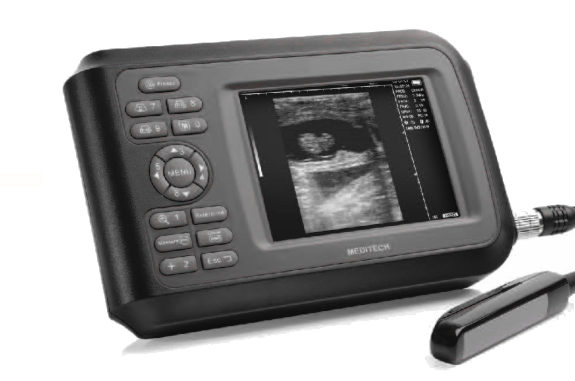

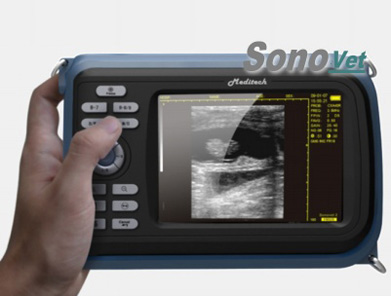

Sonovet palm veterinary ultrasound,weighting only 1.3KG,is distinguishable by its bright and clear image quality.The interchangeable probes offer a wide range of diagnostic applications. Light, Easy and more accurate diagnosis at the point of animal pregnancy at anytime, anywhere, for Vet hospital and outdoor.Battery powered veterinary ultrasound scanner is small and compact.

It is light, excellent for veterinary applications anywhere in the field. Very user friendly!
Sonovet palm veterinary ultrasound,weighting only 1.3KG,is distinguishable by its bright and clear image quality.The interchangeable probes offer a wide range of diagnostic applications. Light, Easy and more accurate diagnosis at the point of animal pregnancy at anytime, anywhere, for Vet hospital and outdoor.Battery powered veterinary ultrasound scanner is small and compact.

It is light, excellent for veterinary applications anywhere in the field. Very user friendly!
Read More
Monitor: 5.5 inch TFT Screen , (Option: 7 inch)
Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
256 frames for cine-memory
64 image permanent storage
Full digital beam-forming technology
probe automatic identification
Gama correction,histogram
Scanning angle adjustment
USB 2.0For real-time picture uploading to PC
Scanning Method: Convex, Micro-convex, Linear, rectal
Display Mode: B,B+B,4B,B+M,M
Gray Scale: 256 levels
Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
4 focusing combination select-able
4 different coded-color available
15 difference kinds of body marks with difference calipers.
Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
PC software to transfer images to the PC (option)
PAL-D output
Mouse interface

Standard configuration:
main unit + L60/6.5MHz rectal linear

Options:
R40/3.5MHz convex probe
R20/5.0MHz micro-convex probe
L40/7.5MHz linear probe
Monitor       : 5.5 inches,TFT  Display( 7inch "Option" )
Gray Scale       :256
Standard Probes       :7.5 Mhz Linear Recall Probe  (Multi-frequency,7.5,8.5Mhz)
Net Weight        :0.8kg 　 　
Digital technology      :Full digitally,with Gama correction,Color encode,image smooth high-technology
USB Port        :support U disk,also mouse for easier use.
TV out-port        :Video PALD,NTSC for video recorder and working station
Clinic Report        :Automatically generating
Display Depth         :≥220mm, multi-steps
CINE LOOP        :≥400 frames
Permanent Memory :128 frames
Image Reservation :left/right, up/down, brightness, contrast ratio，also with focus number, focal position
Character Annotation :Date, time, name, sex, age, doctor, hospital, full screen words edit
Obstetric Measurement :16 kinds of obstetric tables, several GA measurement and OB report.
OPERATING TIME        :≥2h
Optional Parts        :Ultrasound goggles

Options
3.5Mhz convex probe  (Multi-frequency,3.5,5.0Mhz)
6.5Mhz Transvaginal probe  (Multi-frequency,6.5,7.5Mhz)
5.0Mhz Micro-convex probe  (Multi-frequency :4.5,5.0,5.5Mhz)
Car Lighter
Video Printer

Product Features

    Monitor: 5.5 inch TFT Screen , (Option: 7 inch)
    Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
    256 frames for cine-memory
    64 image permanent storage
    Full digital beam-forming technology
    probe automatic identification
    Gama correction,histogram
    Scanning angle adjustment
    USB 2.0For real-time picture uploading to PC
    Scanning Method: Convex, Micro-convex, Linear, rectal
    Display Mode: B,B+B,4B,B+M,M
    Gray Scale: 256 levels
    Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
    Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
    4 focusing combination select-able
    4 different coded-color available
    15 difference kinds of body marks with difference calipers.
    Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
    PC software to transfer images to the PC (option)
    PAL-D output
    Mouse interface

    Standard configuration:
    main unit + L60/6.5MHz rectal linear

    Options:
    R40/3.5MHz convex probe
    R20/5.0MHz micro-convex probe
    L40/7.5MHz linear probe

Product Specifications

    Monitor       : 5.5 inches,TFT  Display( 7inch "Option" )
    Gray Scale       :256
    Standard Probes       :7.5 Mhz Linear Recall Probe  (Multi-frequency,7.5,8.5Mhz)
    Net Weight        :0.8kg 　 　
    Digital technology      :Full digitally,with Gama correction,Color encode,image smooth high-technology
    USB Port        :support U disk,also mouse for easier use.
    TV out-port        :Video PALD,NTSC for video recorder and working station
    Clinic Report        :Automatically generating
    Display Depth         :≥220mm, multi-steps
    CINE LOOP        :≥400 frames
    Permanent Memory :128 frames
    Image Reservation :left/right, up/down, brightness, contrast ratio，also with focus number, focal position
    Character Annotation :Date, time, name, sex, age, doctor, hospital, full screen words edit
    Obstetric Measurement :16 kinds of obstetric tables, several GA measurement and OB report.
    OPERATING TIME        :≥2h
    Optional Parts        :Ultrasound goggles

    Options
    3.5Mhz convex probe  (Multi-frequency,3.5,5.0Mhz)
    6.5Mhz Transvaginal probe  (Multi-frequency,6.5,7.5Mhz)
    5.0Mhz Micro-convex probe  (Multi-frequency :4.5,5.0,5.5Mhz)
    Car Lighter
    Video Printer
